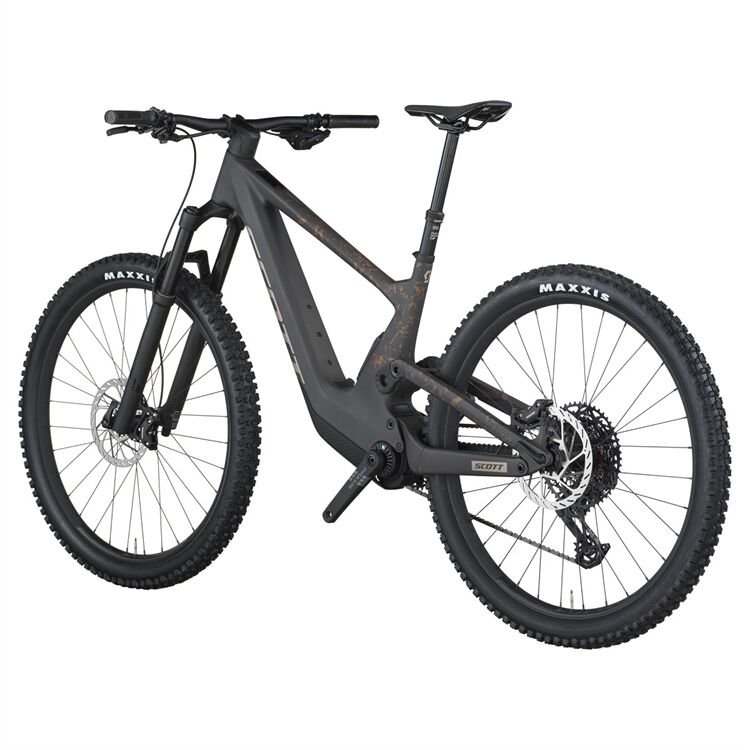

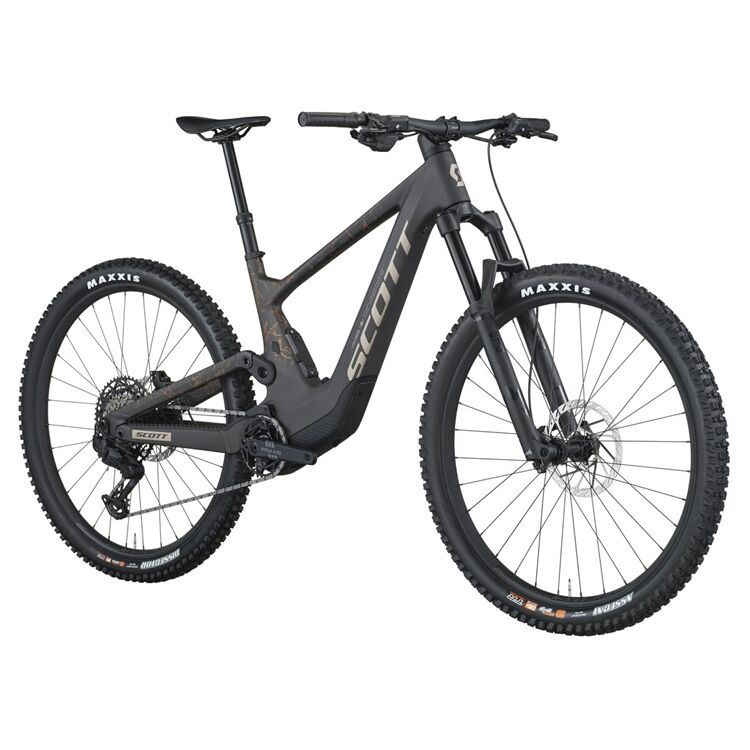

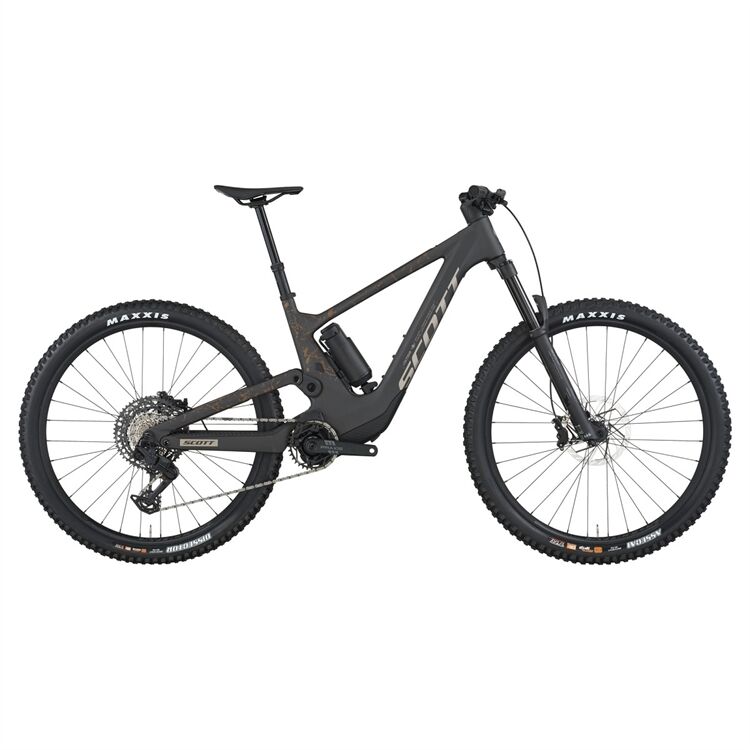

Scott Voltage 920 2026 E-MTB (360 Wh + 160 Wh M carbon black/crackle bronze)

Laufradgröße29"

Herstellernummer4255918316008

RahmenformFully

KategorieE-MTB

EinsatzbereichAll Mountain | Trail

FürUnisex

Farbecarbon black/crackle bronze

Laufradgröße29"

RahmengrößeM

RahmenCarbon HMF Main Frame, Alloy SST-CST, Integrated Suspension Technology, Virtual 4 Link kinematic, Adjustable head angle, Syncros Cable Integration System, TQ HPR60, UDH Interface, 12x148mm with 55mm Chainline

Dämpfer hintenX-Fusion NUDE 5 RLX Trunnion, SCOTT custom w. travel, geo adj., 3 modes: Lockout-Traction Control-Descend, Reb. Adj., Travel 155-100-Lockout, T185X55mm

GabelMarzocchi Z2 Air Rail, Sweep Adj, 15x110mm QR axle, tapered steerer, 44mm offset, Reb. Adj., Lockout, 150mm travel

E-Drive SystemTQ HPR60

DrehmomentMax. 60 Nm

MotorTQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph

MotorpositionMittelmotor

MotorunterstützungBis 25 km/h

DisplayTQ HPR, Bluetooth, ANT+, Dedicated Smartphone app

Akkugröße360 Wh + 160 Wh

AkkutypLi-Ion

LadegerätTQ 100-240V-4A

SchaltungKettenschaltung

SchaltgruppeSRAM Eagle 70

SchalthebelSRAM Eagle 70 Shifter

SchaltwerkSRAM Eagle 70 Transmission 12 Speed

Anzahl Gänge12

KassetteSRAM Eagle XS 1270 Transmission 10-52

KetteSRAM CN Eagle 70 Transmission

KurbelPraxis Alloy

BremsenSRAM DB4 Stealth 4-Piston Disc

BremssystemHydraulische Scheibenbremse

Bremsscheibe vorneSRAM HS2 200mm

Bremsscheibe hintenSRAM HS2 200mm

FelgenSyncros X-30S, 32H, 30mm, Sleeve Joint, Tubeless ready

SpeichenStainless Black 15G, 1.8mm

Nabe vorneFormula CL-811, 15x110mm

Nabe hintenFormula CL-148S, 12x148mm

Reifen vorneMaxxis Assegai, 2.5", 60TPI Foldable, Tubeless Ready, EXO+ 3C Maxx Terra

Reifen hintenMaxxis Dissector, 2.5", 60TPI Foldable, Tubeless Ready, EXO+ 3C Maxx Terra

LenkerSyncros Hixon 2.0 Alloy 6061, Size S & M 15mm rise, Size L & XL 25mm rise, back sweep 8°, 780mm

GriffeSyncros Endurance lock-on grips

SteuersatzSyncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB

SattelSyncros Tofino 2.0 Regular

SattelstützeSyncros Duncan Dropper Post 1.5s, Travel Adjust, 31.6mm, S size 140mm, M size 180mm, L size 180mm, XL size 210mm

StVZO konformNein

ExtrasRemote Lockout: SCOTT TracLoc 2 Technology, Suspension & Dropper Remote, 3 Suspension modes

Zul. Gesamtgewicht130 kg

GewichtCa. 19,8 kg (Herstellerangabe)

GrundfarbeSchwarz
